Woods Custom Wine Cellars Memphis Tennessee (A Processed Video Transcription)

Wine Cellars Memphis Tennessee

I’d like to take you on a tour of the Woods Wine Cellars Memphis Tennessee. This is a very unique cellar. You are looking at the completed project looking through the front windows. This cellar is a combination of custom and kit wine racks as well as metal racking. We’re going to start out with the drawings.

This is the overhead view or the plan view of the wine cellars Memphis Tennessee. You see that it can hold a total of 1,381 bottles. You are looking at the front wall here, the elevation B, the back wall is elevation A, the left is C and the right is elevation D.

We’re going to move on and show you elevation A. We used kit wine racks on the bottom. These are solid diamond bins. This is a support rack on each side where the side racks are positioned.

Above you see the metal racking. We use three-foot-tall metal racks on the two sides. The center is a big bottle rack that holds four big bottles: three and six-liter bottles. The customer decided to put a granite tabletop along this back wall in place of the wooden one that we have drawn in.

We’re going to move on to elevation B. Elevation B is up at the front. You have a window above so we have a small tabletop above, we have solid X-bins and a horizontal display row on the end finishing it off.

You’ll notice that each of our racks are 12 1/4 inch deep in order to fit the depth as the kit wine racks that we used in parts of the wine cellar. Elevation C on the left wall again was using a solid diamond bin with case storage.

We have a tabletop above and metal racking above that. Again these bottles are three deep.

Wine Cellar Design – Wine Cellars Memphis Tennessee

On the right wall, elevation D, this is all wooden racking. It is floor to ceiling. We have a 3 7/8 inch high two-step crown and a four-inch high base adding a bit of elegance to the racking. This again is all custom racking.

We have four display rows: a high reveal display row and three low reveal display rows. Each of these has a light valance above so that LED ribbon lighting can be added.

Moving on here you’ll see the overhead view. This is again the back wall and the right wall. You can also see we have horizontal racking here going up at the end of this row so that is shown to the front window.

Here is the back wall and the left wall. Here we have a view from the front, a view from the back and looking back in through the window. Now this view here is very similar to what you’re seeing here looking through the windows.

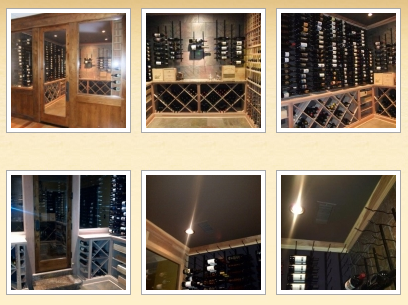

We’re going to move on to some of the completed pictures. You have the left wall here totally completed. You’ll know, well you can’t see it very well here, but this is a wooden tabletop and here it just hid the granite tabletop in the back. There you can see the granite tabletop a little better.

Kit Wine Racks – Combination of Metal and Wooden Wine Racks in Premium Redwood

Here is the left wall again. You’re looking here at the front section. You can kind of see the ends of the bottle sticking out on the horizontal rack that’s on the end here and this is the horizontal rack down the side.

These kit wine racks are all done in an unfinished Premium Redwood. It goes very well with the stone, flooring, and wall that Mr. Woods decided to add to his cellar. Here you’re seeing the left wall with the solid bins and the horizontal racks.

What you’re looking at here is where the air is coming in to cool this cellar. We have a vent in the ceiling. Rather than using a split system, we used a Cellar Pro 4200 BSI which sits on the garage next door and the air is ducted into the cellar. In the back, you can see the vent where the return air goes out.

I hope you’ve enjoyed this tour of the Woods Wine Cellars Memphis Tennessee. This was all supplied by the Wine Cellar Specialists.

Visit our wine cellar ideas gallery to see some more of the incredible projects we’ve been able to complete for our clients!

You are looking at the drawings for Ryan’s wine cellar. He decided to create his custom wine cellars  Baton Rouge Louisiana off the back of his veranda. The cellar will hold a total of 1,634 bottles. We have a Chianti Door opening into the cellar right about this area.

3D Wine Cellar Design – Custom Wine Cellars Baton Rouge Louisiana

You noticed that each elevation is designated by a letter – elevation A, elevation B, and elevation C. The table shown in the center is a table by Ryan. We just gave him dimensions so we’d know how much space he would have around it.

We are going to look at elevation A, to begin with. This is the left wall. We have individual bottle storage on the bottom. We have a solid cabinet below. There’s nothing inside this cabinet because that is for Ryan’s plumbing that goes for the sink above. We have a glass rack and a rectangular bin above that.

All of this is individual 750ml bottle storage. We have a high reveal display row all the way across with a light valance above. The light valance is a place to hide the LED ribbon lighting to shine down on your display row.

Ryan’s Custom Wine Cellars Baton Rouge Louisiana

We have two grill covers and boxes here up above. These hide the RC 6600 twin evaporators for the cooling system. You’ll notice that we have a 4-inch toe-kick and base molding as well as a 3-inch 2-step crown molding above.

Elevation B is the back wall. We have a support rack at the left and right with the elevation A and C made up of elevation B.

In the center, we have Lattice Case custom wine racks and a Lattice X-Bin as well as a drawer, and some individual bottles on the right.  This also is a double deep custom wine racks section.

Custom Wine Racks Baton Rouge Louisiana

We have a wine barrel tabletop all the way across elevation B as well as elevation A. We have a solid arch with hard carved grapevine design and a pop light opening. On each side of this arch, we have a row for magnum size bottles.

Above the arch are horizontal custom wine racks that will hold magnum and larger size bottles. Individual 750ml bottles on either side.

Going on to elevation C, we have more lattice case storage down below. We have lattice diamond bins above and we have a rectangular bin on the end with adjustable shelves.

This is the overhead 3D view of Ryan’s custom wine cellars  Baton Rouge Louisiana. You can see the wine barrel table top going all the way around to the back and the left wall. This is looking in from the door, looking in from up above to the left wall and back, the right wall and back, the left wall and looking in from the outside. Here is the Chianti Arched Door on the outside of the wine room.

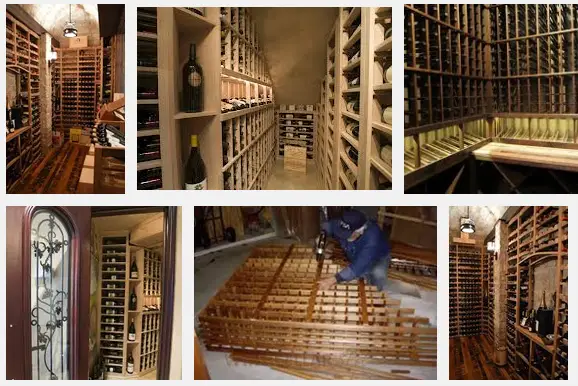

I do have some photographs of the completed wine room. Here again, is the Chianti door after it’s been installed. This is an up-close view of the hand-forged wrought iron grapevine design on the door.

We have the opening door looking into the wine cellar. This is inside the wine cellar on the back wall. The upper left wall showing the grill cover and box, the glass rack, some of the lighting that Ryan has installed.

This is the cabinet with the sink and the arch with the grapevine hand carved design. You can see the wine barrel tabletop below. This is below the arch area – diamond bins and case storage, or rather X cubes and on the right wall are the diamond bins, lattice diamond bins, and lattice case storage.

This is a picture of inside the garage where Ryan had his HPAC man install the compressor unit for the wine cellar.

I hope you’ve enjoyed looking over Ryan’s drawings and his completed cellar photographs – the racking, the cooling, the tabletops – all supplied by Wine Cellar Specialists or Wine Cellar Builders Baton Rouge Louisiana.

Modular and Wall Mounted Series

One important aspect of collecting fine wines is investing in high-quality wine racking solutions.  Wine racks are designed to hold wine bottles the proper way.  Most racking systems are built to facilitate horizontal storage that allows the cork to continuously come into contact with the wine.  Keeping the cork moist at all times is vital to maintaining the taste and flavor of wines.

Kessick Wine Racks Select Series

Wine rack storage and display units come in a variety of configurations and storage capacities.  They offer versatility in design options that can suit a range of needs and requirements.  There are wine storage solutions that can be hung or mounted on walls to free up floor space while others have modular features that provide flexible arrangement.

Kessick wine racks are designed for wine collectors who want to bring a modern and contemporary look to their wine storage room.  Kessick is known for its Estate Design and Contemporary racking systems, with the Select Series as the latest Design Series.  Their storage and display units have always been unique in terms of design format, aesthetic quality, and wood variety.

The Select Series is wall mounted wine racks that make use of a cleat system that allows for ease of installation and secure mounting of the racking system.  The cleat hanging installation method keeps wine racks off the floor and provides enough ceiling clearance for additional storage.

Wall-mounted wine racks come fully assembled, along with wall install kits that wine collectors can easily put together on their own.  The Select Series is available in a range of design formats, such as label forward displays, display rows, hanging wine glass rack, quarter round displays, wood case storage, X bins, and true radius curved corner displays.

Kessick Wine Racks – Estate Modular Wine Racks

Kessick Estate Design Series are modular wine racks that come in four different pre-fabricated models and configurations.  This type of racking system includes arched tabletop, individual bottle storage, diamond, and rectangular bin storage, and high reveal display row.

Today, the Estate Series can already be customized such that you can add more or change pieces to fit your storage needs.  There is also an option for additional features such as LED lighting, lacquer finish, as well as back and side panels.

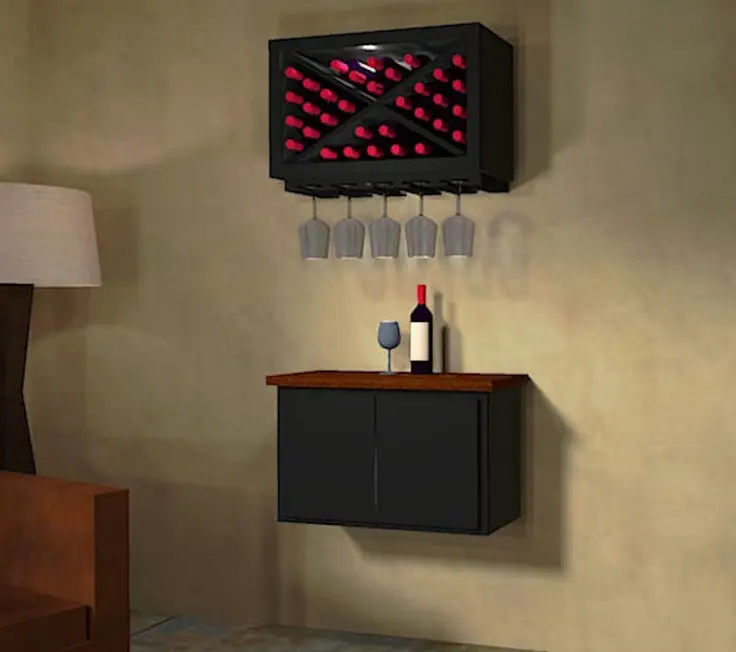

Contemporary modular wine racks are also available.  These storage and display units feature floor mounted and wall mounted racking systems.  No assembly required for these units.  They are shipped ready to install.  The design format also comes with complete hardware and accessories.  The inner and outer part of each module is coated in a black, satin finish.

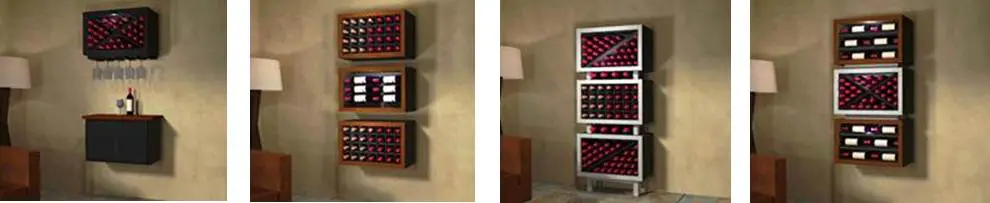

Contemporary Wall Mounted Wine Racks

Kessick wine storage and display units are made from Pine and Sapele Mahogany.  Pine is an excellent option for displaying wine bottles in a non-climate controlled environment such as alcoves and small closets.  Minimal staining is needed for this wood species because of its natural grains and patterns that are lovely to look at when raw.

Sapele Mahogany suits the cool and damp conditions of a dedicated wine storage room because this wood variety is naturally resistant to mildew. It is also very durable and stable.  Sapele requires no stain since it has rich, deep hues that are strikingly beautiful. It has natural coloring that will eventually darken as it ages.

Kessick wine racks are ideal for both large and small scale storage.  These are high-quality wood-based wine storage solutions that can befit modern themed apartments and wine cellars.
