Wine Cellar Cooling Systems

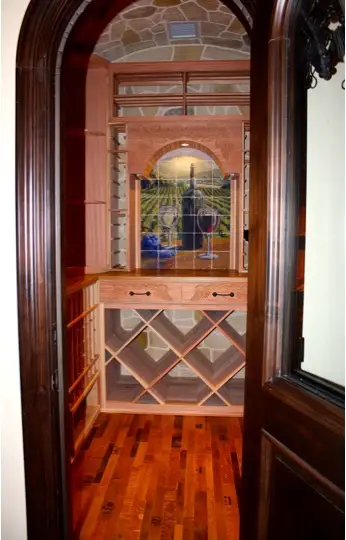

Wine Cellar Installed with a Wine Guardian Cooling System

Discerning wine collectors around the globe are recognizing the value of proper wine storage, driving demand for top-notch refrigeration solutions. If you’re here looking for the right wine cellar cooling system and solutions for you, we’d like to introduce you to one of our most trusted brands – Wine Guardian!

Wine Guardian is a premier division of Air Innovations, a US-based company at the forefront of developing climate control systems for both commercial and residential wine cellars. From self-contained to split systems, humidifiers, and more, this manufacturer has all the tools you need to keep every bottle in your collection fresh and ready to be consumed 24/7.

Flexible Installation Options

Our Wine Guardian cooling units are available in a number of different types of systems. These include Through-the-Wall, Split, and Ducted systems. We can help you choose a refrigeration unit with the capacity that suits the size and location of your wine room, and the number of bottles you intend to store. We also offer the Wine Guardian humidifiers to increase the humidity levels in Texas wine cellars.

Ducted Self-Contained Wine Cellar Cooling Units

There is a different kind of freedom in a discreet, self-contained cooling system, expertly crafted to blend seamlessly into your bespoke wine cellar. With professionally-installed ductwork, this elegant solution ensures no bulky equipment distracts from your cellar’s presentation, even without a nearby room for a condensing unit.

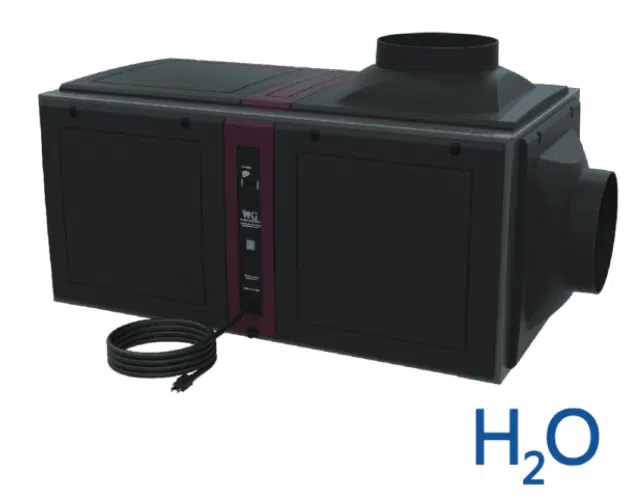

Photo of Wine Guardian's ducted split-system wine cellar cooling evaporator, water-cooled

This is the water-cooled, ductless wine cellar cooling split system great for medium to large wine cellars.

Air Cooled Vs Water Cooled Systems

Wine Guardian’s air-cooled systems are meticulously designed for superior temperature regulation, humidity control, and air circulation.

However for larger-scale wine rooms with ventilation challenges, we recommend their water-cooled systems. Water-cooled systems remove the need to exhaust heat, but you’ll need a steady supply of water all year round. Besides wine cellars, these systems are popular in geothermal plants, cooling towers, and lake water applications.

Whether air-cooled or water-cooled, these ducted climate control systems are space-saving wonders, that subtly integrates into your racking. While they’re quiet and invisible to the eye, these systems are powerful enough to masterfully maintain your cellar’s temperature and humidity non-stop.

2024 List of Wine Guardian’s Ducted Self-Contained Wine Cellar Cooling Systems:

MODEL

Air Cooled VS Water Cooled

Line Frequency

 D025WC

Water Cooled

60 Hz

D050WC

Water Cooled

60 Hz

D200WC

Water Cooled

60 Hz

D088WC

Water Cooled

60 Hz

 DP25WC

Water Cooled

60 Hz

DP50WC

Water Cooled

60 Hz

DP88WC

Water Cooled

60 Hz

DP200WC

Water Cooled

60 Hz

WG40WC

Water Cooled

50 Hz

WG75WC

Water Cooled

50 Hz

WG100WC

Water Cooled

50 Hz

WG175WC

Water Cooled

50 Hz

D025

Air Cooled

60Hz

D050

Air Cooled

60Hz

D088

Air Cooled



D200

Air Cooled

60Hz

DP25

Air Cooled

60Hz

DP50

Air Cooled

60Hz

DP88

Air Cooled

60Hz

DP200

Air Cooled

60Hz

WG40

Air Cooled

50Hz

WG75

Air Cooled

50Hz

WG100

Air Cooled

50Hz

WG175

Air Cooled

50Hz

Note: Visit Wine Guardian’s website to see product updates.

Standard features:

  • ¼-ton to 2-ton capacities (400 to 8500 cu ft. or 10 to 250 m3)
  • Multiple supply air openings for installation flexibility
  • Removable control panel for easy access
  • Remote user interface control system
  • One supply and one return duct collars
  • Lightweight, corrosion-resistant, all-aluminum outer body
  • High static pressure fans for extended lengths of ductwork
  • All-aluminum evaporator and condenser coils for superior corrosion resistance.
  • Factory tested prior to shipment
  • Completely self-contained design
  • Certified by ETL to UL, Canadian, CE, and other international safety standards
  • Made in the USA
  • Warranted to two years (parts) and one year (labor)
  • Factory service hotline support

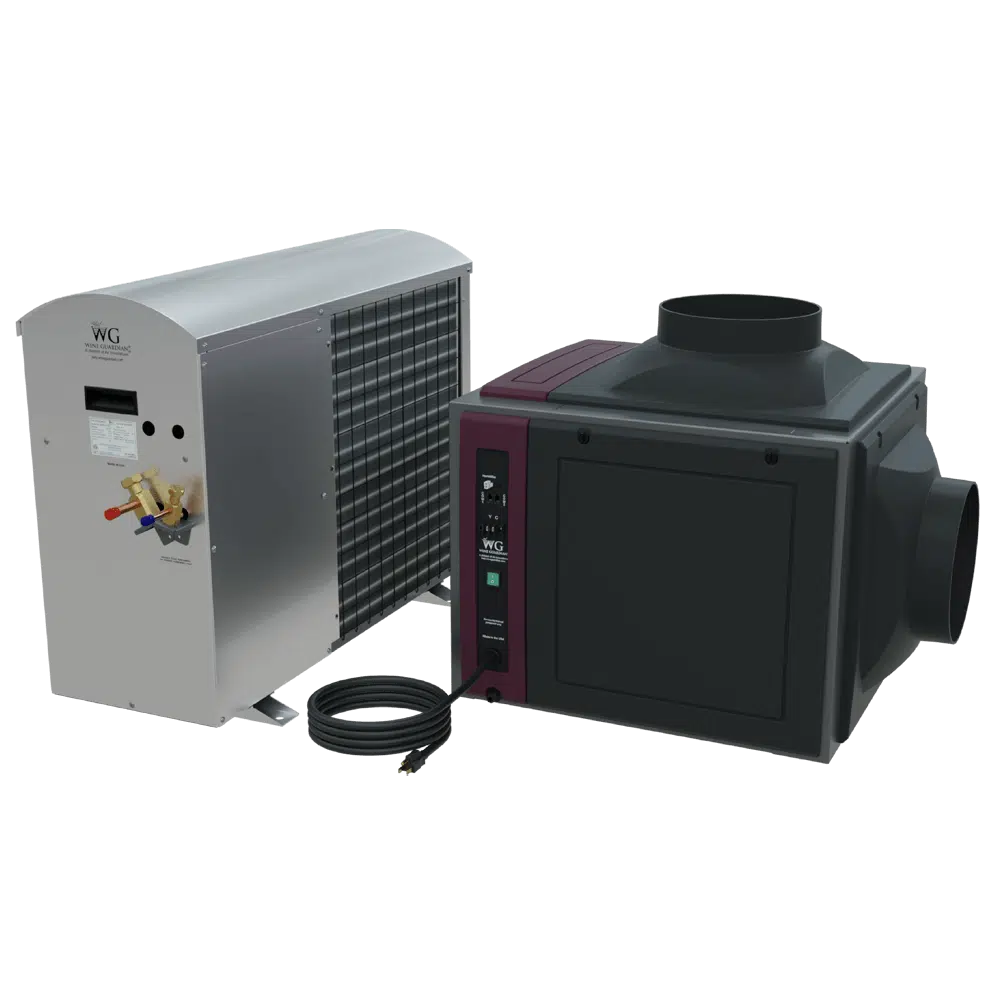

Photo of Wine Guardian's Ducted Split Wine Cellar Cooling System

The split system includes two machines, the evaporator and the condenser.

Ducted Split Wine Room Cooling Systems

If you’re facing challenges with heat exhaust or ventilation, Wine Guardian’s ducted split wine cellar cooling system is an excellent solution. As it is with ducted cooling systems, this line offers a quiet and vibration-free operation. The ducting is custom-built for flexibility since every home or business establishment is different.

Wine Guardian’s ducted split systems are their most flexible units, allowing them to be installed anywhere, regardless of location and design of the wine cellar.

This category of cooling units comprise of two separate units: the evaporator and the condenser. Featuring an aluminum frame and coated coils, Wine Guardian’s commercial-grade evaporators are corrosion resistant. Likewise, all their condensers are engineered with an anodized all-aluminum housing to withstand external temperature below 40 degrees F and prevent corrosion.

2024 List of Wine Guardian’s Ducted Split Wine Cooling Systems:

MODEL

Line Frequency

DS050

60hz

DS088

60hz

DS200

60hz

DS025

60hz

SP25

60hz

SP50

60hz

SP88

60hz

SP200

60hz

WGS40

50hz

WGS75

50hz

WGS100

50hz

WGS175

50hz

Note: Visit Wine Guardian’s website to see product updates.

Standard features:

  • Fan coil unit and condensing system
  • Condensing unit includes: high and low refrigerant pressure switches, low ambient protection, refrigerant sight glass, and filter drier
  • Commercial-grade, corrosion-resistant components and all-aluminum frame for long-term durability
  • A remote user interface controller
  • One supply and one return duct collars
  • Multiple capacities for cellars of any size and configuration
  • Multiple supply air openings for installation flexibility (for up to 5 outlets)
  • Made in the USA
  • High static pressure fans for extended lengths of ductwork
  • Warranted to two years (parts) and one year (labor)
  • Factory service hotline support

Ductless Split System Wine Room Cooling Systems

Space scarcity shouldn’t compromise your wine’s optimum condition. Wine Guardian’s ductless split wine cooling units are specially designed for compact wine cellars and mid-sized wine rooms. These units seamlessly fit into your wall or ceiling, providing the much-needed cooling without taking up valuable room.



These wine cellar cooling systems might look huge, but they won’t be seen within your wine cellar apart from the air registers.



Ideal for projects with limited space for ductwork or areas with restricted condenser air exhaust, these units are the go-to solution.

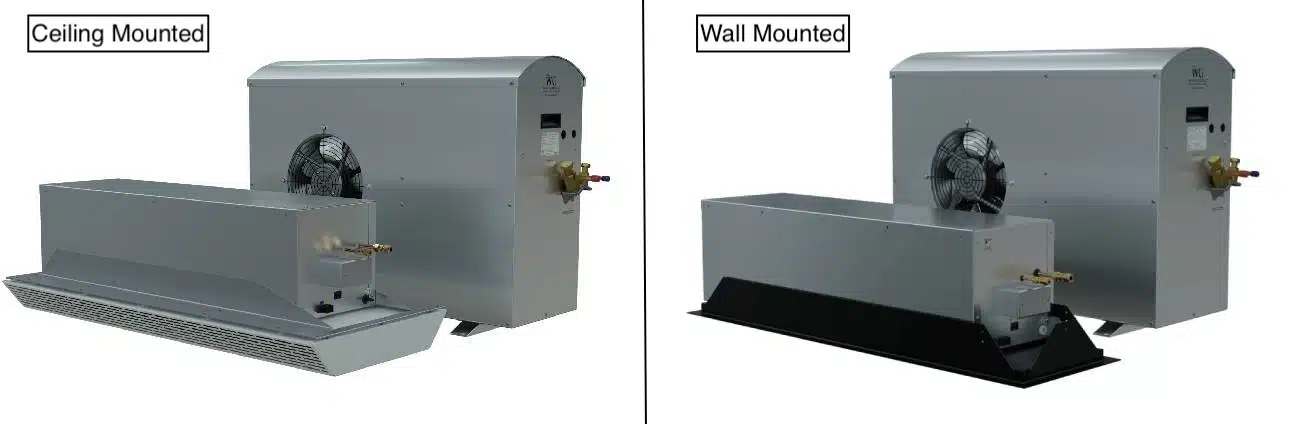

Wine Guardian provides three types of tailor-made wine cellar ductless split cooling units: wall-mounted, ceiling-mounted, and through-the-wall. The unique design of their wall-mounted and ceiling-mounted units simplifies the installation process, making it a one-person job.

2024 List of Wine Guardian’ Ductless Split Wine Cooling Systems:

MODEL

Installation

Line Frequency

CS025

Wall Mount

60Hz

CS050

Wall Mount

60Hz

CS025 CM

Ceiling Mount

60Hz

CS050 CM

Ceiling Mount

60Hz

SS018

Through-the-Wall

60Hz

WGC40

Wall Mount

50Hz

WGC75

Wall Mount

50Hz

WGC75 CM

Ceiling Mount

50Hz

WGS025

Through-the-Wall

50Hz

Note: Visit Wine Guardian’s website to see product updates.

Through-the-Wall Wine Cellar Cooling Units

The Through-the-Wall cooling system is built with a sleek design suitable for small to middle size modern wine cellars. It maintains the best storage environment needed for proper wine preservation while delivering an ultra-quiet operation and maximum airflow.



Photo of Wine Guardian's Through-the-Wall Wine Room Cooling Unit

When installed, part of this wine cellar cooling evaporator protrudes slightly into the wine cellar.



2024 List of Wine Guardian’s Through-the-Wall Wine Cooling Systems:

MODEL

Capacity

Length

Width

Height

Electrical (V/ph/Hz)

Weight

TTW018

981-1950 BTU

25″

14.25″

15.88″

115V/1/60

62lbs

TTW009

250-1090 BTU

25″

14.25″

15.88″

115V/1/60

60lbs

TTW009H

250-1090 BTU

25″

14.25″

15.88″

115V/1/60

60lbs

TTW08H

981-1950 BTU

25″

14.25″

15.88″

115V/1/60

62lbs

WG15

0.07-0.248kw

63.5cm

36.2cm

40.3cm

220-240/1/50

27kg

WG15H

0.07-0.248kw

63.5cm

36.2cm

40.3cm

220-240/1/50

27kg

WG25

0.22-0.455kw

63.5cm

36.2cm

40.3cm

220-240/1/50

28kg

WG25H

0.22-0.455kw

63.5cm

36.2cm

40.3cm

220-240/1/50

28kg

Note: Visit Wine Guardian’s website to see product updates.

Other features include:

  • Quiet and efficient operation
  • The only TTW system that displays both temperature and humidity, and also controls temperature
  • Commercial-grade, corrosion-resistant components and an all-aluminum frame for long-term
  • Multiple Configurations
  • One-piece wall bracket and support frame included

Humidifiers for Optimal Wine Cellar Humidity

Humidifiers can be integrated into any wine room to ensure that wine matured properly before it is consumed. The main function of these humidifiers is to regulate the humidity levels in a residential or commercial wine cellar.

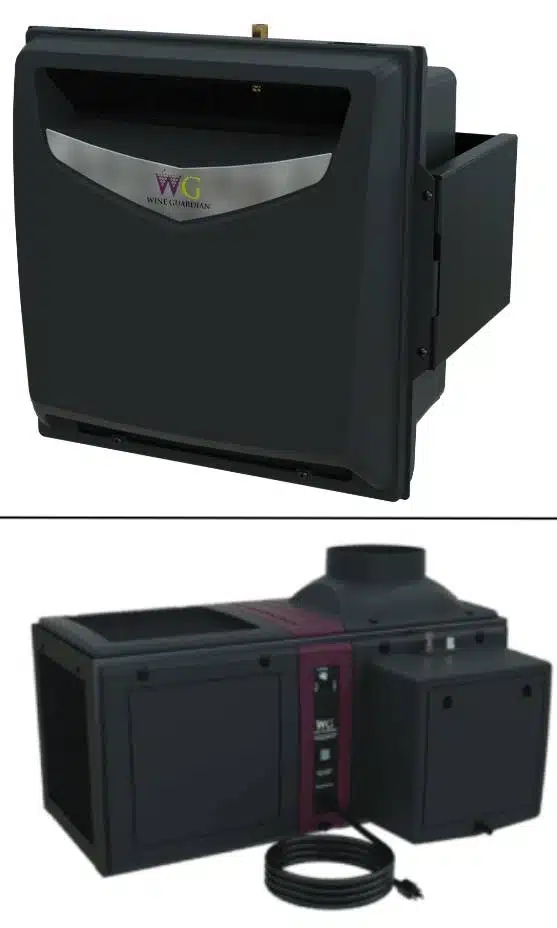

The upper photo is the freestanding humidifier, while the lower photo is the integrated wine cellar cooling unit humidifier.



Available as free-standing or integrated units, Wine Guardian’s humidifiers are suitable for ducted and ducted split systems. They can also be installed in wine rooms with other brands of refrigeration units.

Wine Guardian’s humidifiers are available in five models: Integrated Humidifier, Humidifier (w/ WG unit) with Wall-mount-bracket, Humidifier (w/ WG unit) with Through-the-wall mounting bracket, Humidifier (No WG unit) with Wall-mount-bracket, and Humidifier (No WG unit) with Through-the-wall mounting bracket.

Other features:

  • Digital controls that work off of Wine Guardian’s remote indicator. There’s no need for a separate controller.
  • Built-in fans for optimal air circulation
  • Commercial grade and lightweight, corrosion-resistant components
  • Evaporative drip pad system with removable, cleanable pad
  • Drip pad access cover for easy maintenance
  • 25 feet (8 meters) of control cable pre-wired to the unit for easy plugin
  • Warranted to two years (parts) and one year (labor)
  • Made in the USA

Choose a Commercial Grade and Sleek Wine Cellar Cooling Solution

Wine Cellar Design Request

Wine Cellar Design Request

Selecting the right wine cellar cooling system for your collection can feel overwhelming. When you work with professional wine cellar specialists like us who has years of experience in all aspects of wine preservation, you can get through your project with a breeze.

We’ve worked with Wine Guardian for many, many years because of their unparalleled durability and prompt customer service. We always value our clients which is why we only recommend the best.

We mostly source our Wine Guardian units from IronWine Cellars and you can contact them directly or talk to us here at Wine Cellar Specialists! We are always thrilled to help our clients out, and you can call us at +1 972 454 0480 to start!
